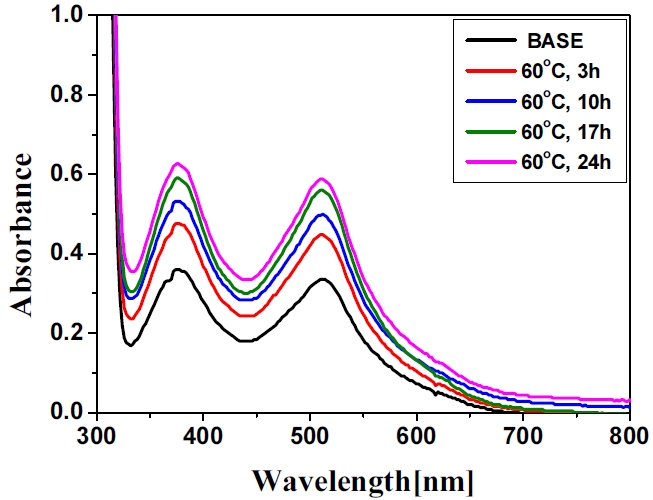

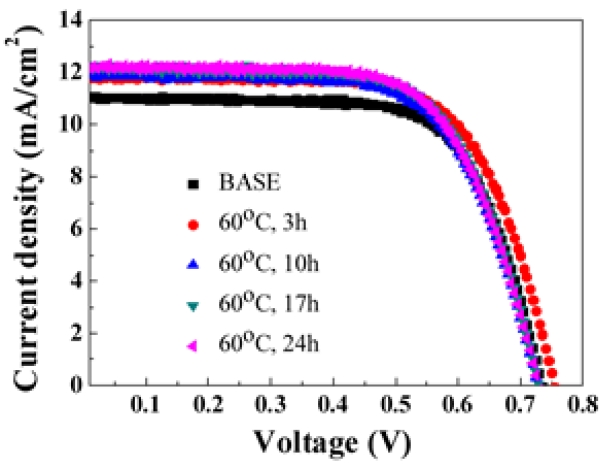

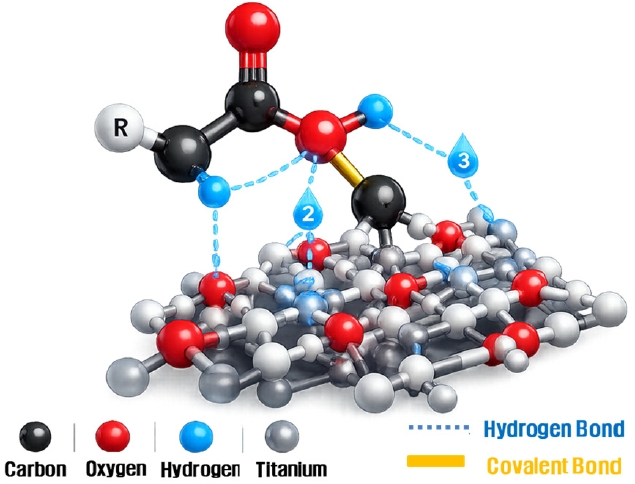

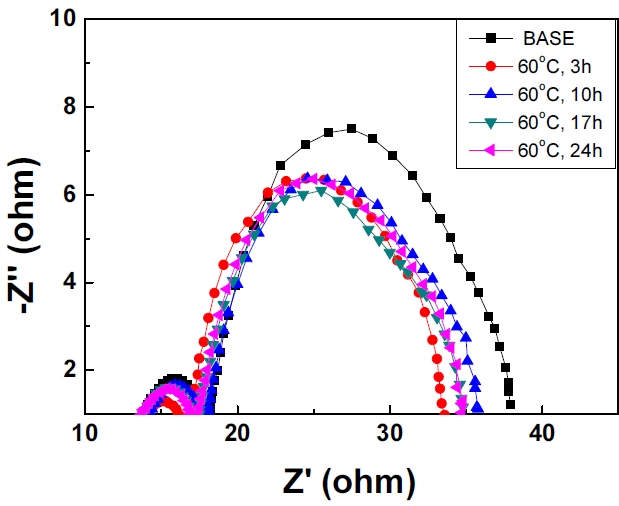

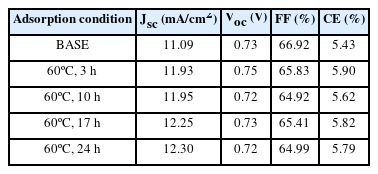

, Byungyou Hong1 Dye adsorption is one of the most time-consuming processes in the fabrication of dye-sensitized solar cells (DSSCs), typically requiring approximately 24 h at room temperature. In this study, the effect of adsorption temperature and time on photovoltaic performance of DSSCs was investigated in order to reduce processing time and improve device productivity. Nanoporous TiO2 photoelectrodes were immersed in N719 dye solution at 60°C for 3 h, 10 h, 17 h, and 24 h, and their performance was compared with that of cells sensitized at room temperature for 24 h. Photovoltaic characterization under AM 1.5 illumination showed that DSSCs sensitized at 60°C exhibited improved performance compared to those sensitized at room temperature. The device sensitized at 60°C for 3 h showed comparable or higher conversion efficiency than the reference cell sensitized for 24 h at room temperature. The improvement in device performance is attributed to enhanced dye adsorption kinetics resulting from increased reaction rate between the carboxyl groups of N719 dye molecules and hydroxyl groups on the TiO2 surface. Electrochemical impedance spectroscopy analysis revealed reduced recombination resistance at the TiO2/dye/electrolyte interface for cells sensitized at elevated temperature. UV–Vis absorption analysis confirmed increased dye loading on the TiO2 surface for the 60°C condition. These results demonstrate that elevated temperature dye adsorption significantly reduces processing time while maintaining photovoltaic performance, providing an effective strategy for improving manufacturing efficiency of DSSCs.
